NZXT Switch 810

Stylish and well ventilated case!

Author:	Lauri 'lauri_lr' Rahtu
Published:	17.01.2012
Manufacturer:	NZXT
Product Group:	Enclosures
In English Suomeksi

Intro

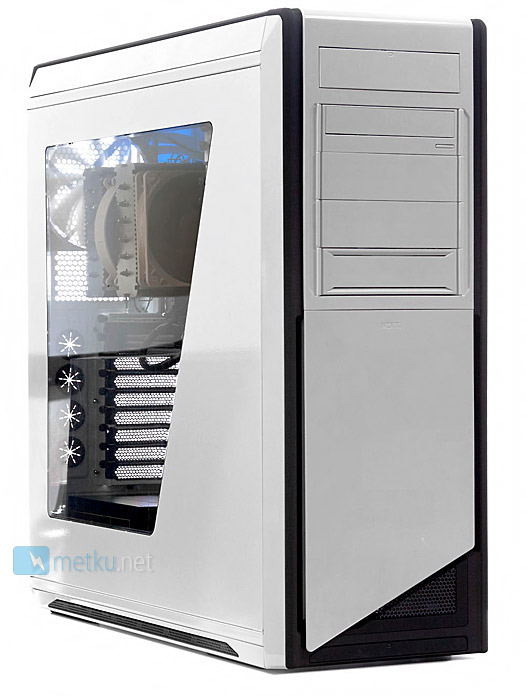

NZXT just published a new full-tower case with many innovative features. We’ve already reviewed a few NZXT’s cases in the past in Metku.net and now we’ll find out how the new case, Switch 810, will perform.

Specifications

NZXT Switch 810 - Stylish and well ventilated case!

Dimensions (W, H, D): 235mm x 595mm x 585mm
Materials: Steel, plastic
Total weight: 13,7kg
Motherboard support: E-ATX, XL-ATX, ATX, Micro-ATX, Mini-ITX
External connections: Standard audio/mic, 2x USB 3.0, 2x USB 2.0, card reader
Cooling:
- Front: 2 x 120mm or 2 x 140mm (1 x 140mm included)
- Top: 3 x 120mm or 3 x 140mm (1 x 140mm included)
- Rear: 1x 120mm or 1 x 140mm (1 x 140mm included)
- Bottom: 2 x 120mm or 2 x 140mm (optional)
- Interior: 2 x 120mm or 2 x 140mm (1 x 140mm included)
Clearance:
- VGA support: 375mm (without fan), 350mm (with fan), 285mm (full pivot)
- CPU heatsink support: 195 mm
- Wiring space: 23mm

Bundle

NZXT Switch 810 - Stylish and well ventilated case!

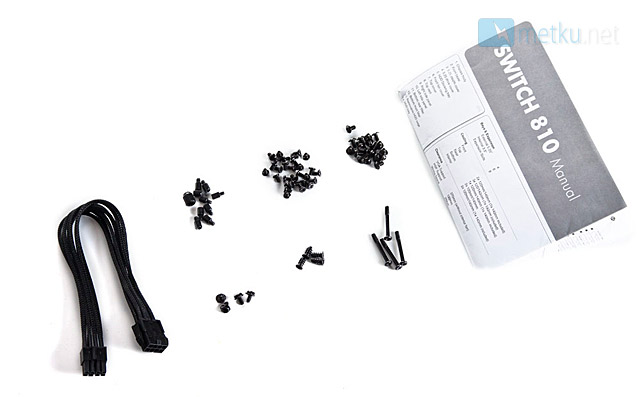

The bundle includes different kind of screws, user manual, sleeved 8 pin extension cable (250mm) and zip ties. The extension cable is a very useful because many power supplies have too short CPU ATX 12v cable for a case like this. There are all necessary screws delivered with the case but there really aren’t any spare screws.

Pages: 1 2 3 4 5 6 7
